10A 20A 12V 24V PWM Intelligent Solar Panel PV Charge Controller with LCD Display Screen for Lead-Acid/Lithium/LiFePO4 Battery(10A)

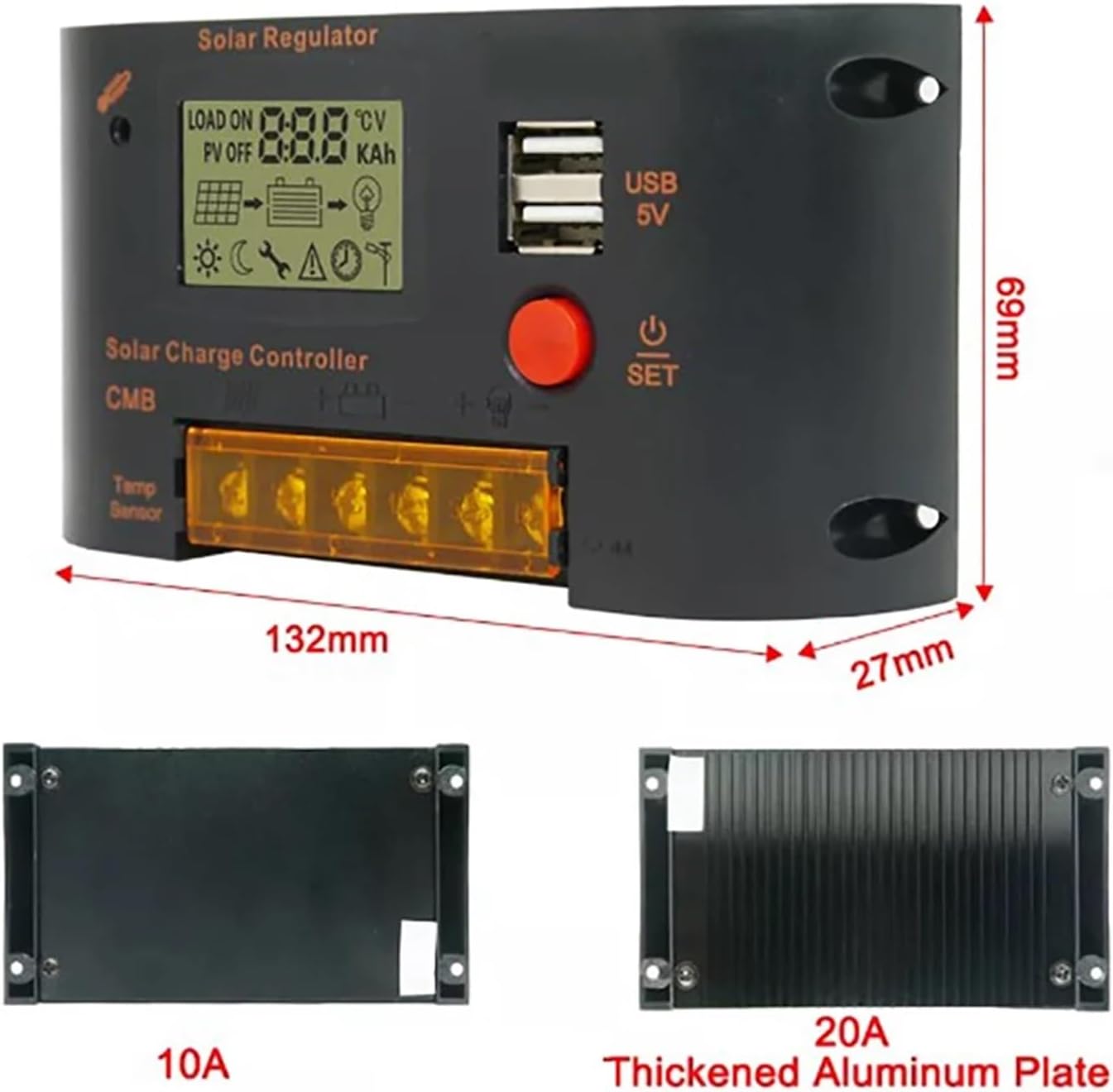

Solar Battery Chargers & Charging Kits10A 20A 12V 24V PWM Intelligent Solar Panel PV Charge Controller with LCD Display Screen for Lead-acid/Lithium/LiFePO4 BatteryWhere you can apply the solar charge controller for?This solar charge controller is designed with LCD display, you can monitor the working status much clearly.With 1 button for you to adjust parameter conveniently.You can apply it for RV, Caravan, , Solar Home, Solar Bag or other portable solar system.What kind of Battery You can Use it to chargeYou can use the 10A/20A solar charge controller for FLD, SEL and GEL lead acid battery and Lithium Battery.Features1.Standard PWM control mode can optimize charge method2.Unique control technology and simple streetlight operation mode3.Over charging,over discharging,over load,short circuit and reverse polarity protection4.Can use off-grid power generation systemInituitive LED double-digital displaysSpecificationBattery System Voltage: 12V/24VRated Charge Curent:10A/20ARated Discharge Current: 10A/20AMax Input Solar Panel Voltage: 55VUSB Output: 5V 2A Operating Temperature: -20ºC ~ +45ºC Size: 132x69x27mmNet Weight: 0.2kgHow to connect solar system with the controller:Step 1: Connect the battery to the solar charge controller firstly- plus and minus.Step 2: Connect the solar panel to the controller secondly.Step 3. Connect Load to the controllerThe reverse order applies when de-installing.Product DetailPackage Include:1 X Solar Charge Controller1 X User Manual
